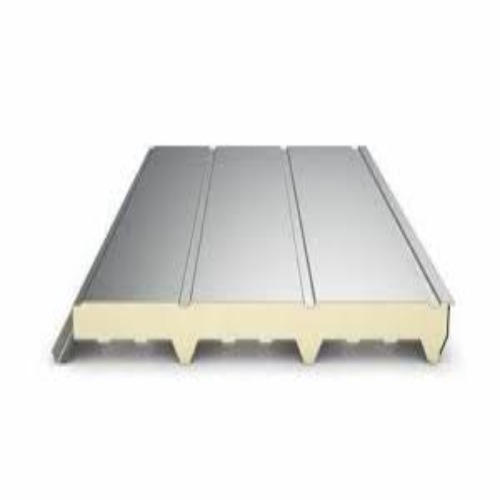

Puff ceiling panel

Puff ceiling panel Specification

Heat Conductivity
0.022 W/mK

Length
Customizable up to 12 meters

Working Temperature
-40C to +80C

Height
Depends on thickness

Type
PUF Sandwich Ceiling Panel

Material
Pre-painted galvanized iron (PPGI) Sheet & Polyurethane Foam (PUF)

Thickness
30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm (customizable)

Density
2 Gram per cubic centimeter(g/cm3)

Layer
2 (Outer metal skin + PUF core)

Color
White, Grey, customizable as per requirement

Size
Standard width: 1000mm, length up to 12 meters

Panel Weight
Approximately 10-12 kg/m2 depending on thickness

Compressive Strength
> 0.15 N/mm2

Edge Profile
Camlock or Tongue & Groove type

Surface Finish
Metallic/Ribbed/Matte finish available

Water Absorption
< 1% by volume

Corrosion Resistance
High, due to galvanized and painted steel

Shear Strength
> 0.18 N/mm2

Application
Ceiling and roofing for cold storage, industrial sheds, food processing units

Installation
Tongue & groove joint for leak proof assembly

Sound Insulation
Good acoustic performance

Fire Resistance
Self-extinguishing PUF core in accordance with IS:12436

Thermal Insulation
Excellent, suitable for temperature controlled environments

Puff ceiling panel About

PUF Ceiling Panel

PUF (Polyurethane Foam) Ceiling Panels are high-performance insulated panels designed to provide superior thermal insulation, energy efficiency, and durability. Manufactured using premium-quality polyurethane foam sandwiched between pre-painted galvanized iron (PPGI) or galvanized steel sheets, these panels are ideal for cold storage facilities, clean rooms, warehouses, food processing units, pharmaceutical industries, commercial buildings, and industrial structures. They offer excellent temperature control, moisture resistance, and sound insulation while ensuring quick installation and low maintenance.

Features:

* Excellent thermal insulation

* Lightweight and durable construction

* Energy-efficient design

* Fire-resistant and moisture-resistant

* Easy and fast installation

* Corrosion-resistant surface

* Low maintenance and long service life

Applications:

* Cold Storage

* Clean Rooms

* Food Processing Units

* Pharmaceutical Industries

* Industrial Sheds

* Warehouses

* Commercial Buildings

* Modular Construction

Exceptional Thermal and Acoustic Insulation

Designed for energy efficiency, Puff ceiling panels feature a dense PUF core that delivers outstanding thermal insulation with a heat conductivity of only 0.022 W/mK. These panels also offer good sound insulation properties, making them ideal for environments requiring temperature and noise control, such as cold storage facilities, laboratories, and production areas.

Durable and Safe Construction

Crafted with pre-painted galvanized iron skin and a self-extinguishing PUF core, Puff ceiling panels provide robust fire resistance and enhanced durability. The high compressive and shear strength makes them suitable for demanding industrial applications, while their water absorption rate of less than 1% by volume ensures long-term reliability.

Flexible Design and Easy Installation

Available in varied thicknesses (30-100 mm) and customizable dimensions up to 12 meters in length, these panels can be tailored to specific project needs. The tongue & groove or Camlock edge profiles facilitate quick, leak-proof assembly, reducing installation time and ensuring high performance and structural integrity.

FAQ's of Puff ceiling panel:

Q: How are Puff ceiling panels installed to ensure leak-proof performance?

A: Puff ceiling panels use a precise tongue & groove joint or Camlock edge profile, allowing each panel to interlock securely and create a seal that prevents leaks. This design streamlines assembly, boosts structural rigidity, and provides superior insulation for temperature-controlled environments.

Q: What makes the Puff ceiling panel suitable for temperature-controlled spaces?

A: The panel's PUF core offers excellent thermal insulation, low heat conductivity (0.022 W/mK), and minimal water absorption, maintaining consistent interior temperatures. This makes it an ideal solution for applications like cold storage, food processing, and industrial facilities requiring strict temperature management.

Q: When should Puff ceiling panels be chosen over traditional materials?

A: Choose Puff ceiling panels when you need high thermal and sound insulation, fire resistance, and corrosion protection-especially in environments like cold storage, clean rooms, or industrial sheds where standard materials may fall short on durability and energy efficiency.

Q: Where can Puff ceiling panels be applied effectively?

A: These panels are well-suited for ceilings and roofing in cold storage, food processing units, laboratories, commercial kitchens, industrial buildings, and warehouses. Their customizable sizes and robust construction make them versatile across multiple industries.

Q: What is the process for customizing the color, size, or thickness of these panels?

A: Customization is available for panel thickness (from 30 mm to 100 mm), length (up to 12 metres), and color (white, grey, or as per requirement). Discuss your project specifications with the manufacturer, supplier, or dealer to determine the best configuration for your needs.

Q: How does the panel's metallic, ribbed, or matte finish benefit end users?

A: These surface finishes not only enhance aesthetic appeal but also contribute to durability. Metallic and ribbed finishes improve strength and scratch resistance, while the matte option reduces glare, making the product suitable for both functional and visual requirements.
